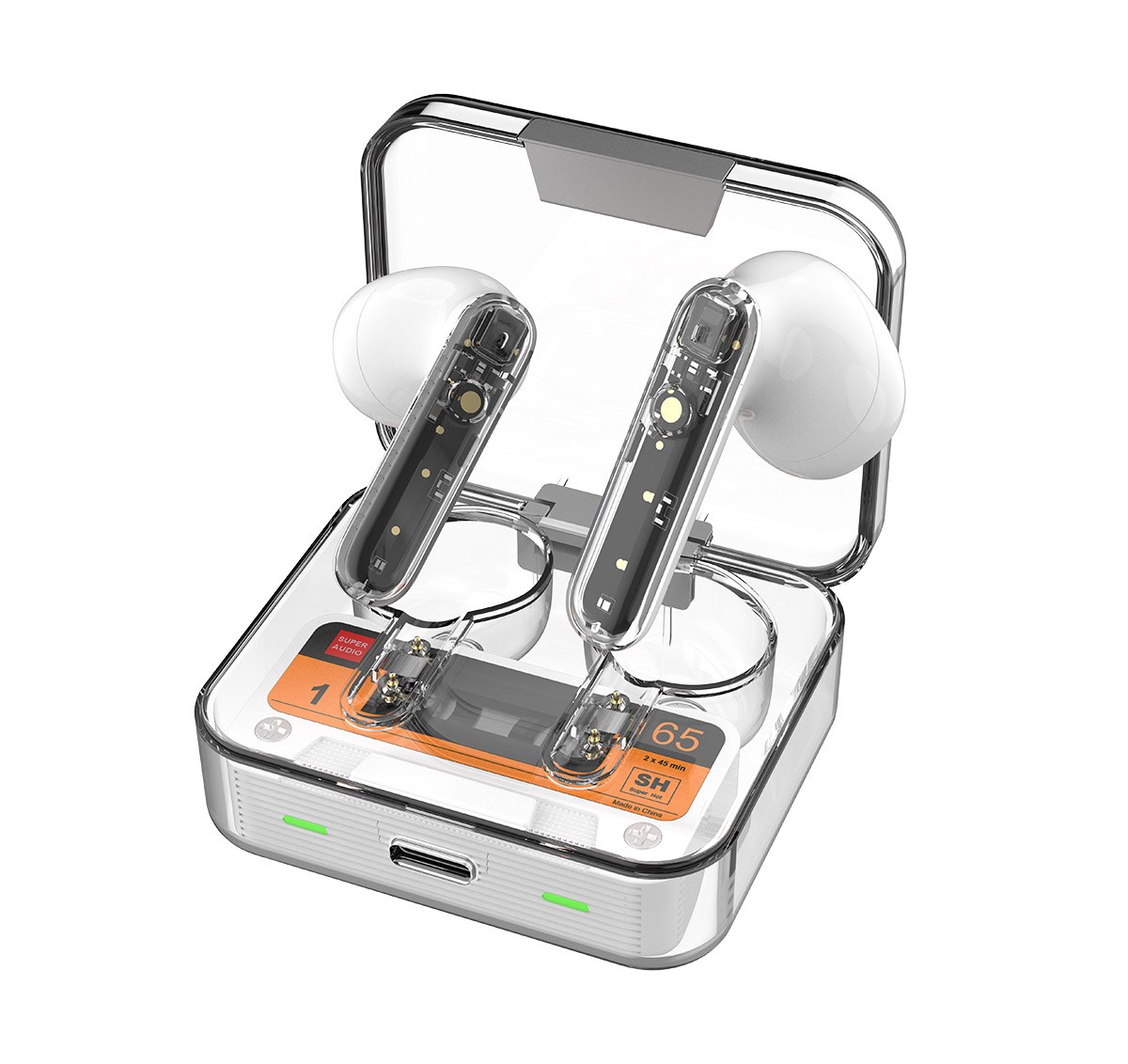

G10
G10

Bluetooth stereo: supports connecting Bluetooth devices to play music

Bluetooth call: supports Bluetooth connection for high-definition calls

Battery indicator: Supports iOS system headphone battery indicator

Hall sensor: Supports Hall switch function

Waterproof/dustproof level: IPX4

Parameter

ProjectParameter characteristics
ModelG10
Stereo typeBluetooth earphones
Track systemDual channel
The control modeSide touch mode
Active passiveActive
Bluetooth solutionsJL6983D2
Bluetooth versionBluetooth V5.3
Support  Bluetooth profileA2DP、AVRCP、HSP、HFP
Bluetooth working frequency2.402GHz-2.480GHz
TYP-85dBm
Bluetooth range10m
Speaker PowerRating 2mW
Earphone RF power levelClass2
Power amplifier typeBuilt in chip
S/N≥90dB
Frequency response50Hz～20KHz
Speaker typeFull frequency horn Φ13mm@32 ohm
MICSilicone，-42dB+-2,
BatteryEar lithium battery 3.7V, 25mAh; Storage lithium battery 3.7V, 300mAh
Music timeAbout 4 hours (80% volume)
Talk timeAbout 3.5 hours (80% volume)
Standby timeHeadphones take about 50 hours, with a charging case and standby time of about 240 hours
Charging input criteriaType-C-DC-5V 200mA
Charging timeHeadphones take about 1 hours; Warehouse takes about 1.5 hours
Battery cycle lifeCharging and discharging cycles ≥ 300 times
Temperature/humidity rangeThe product should be avoided from contact with corrosive substances and kept away from sources of fire and heat when placed in a dry and ventilated indoor environment. The product is charged every 3 months during storage. Working temperature: 0-40 ℃, storage temperature: -10-45 ℃, working humidity: less than 70%, storage humidity: less than 70%
Earphone static currentBelow 12uA
Static current of charging caseBelow 30uA
